IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE

  • IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE
  • IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE
สถานที่กำเนิด จีน
ชื่อแบรนด์ JUTAI
ได้รับการรับรอง CE
หมายเลขรุ่น CL20-8L
จำนวนสั่งซื้อขั้นต่ำ 1
ราคา negotiable
รายละเอียดการบรรจุ การ์ตูน
เวลาการส่งมอบ 5 - 8 วันทำการ
เงื่อนไขการชำระเงิน T/T, L/C, D/A, D/P, Western Union, Paypal ,, Moneygram, Alipay
สามารถในการผลิต 1,000 ชิ้นต่อเดือน

ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สกายเป้: sales10@aixton.com

หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
การจัดอันดับ IP IP67 การทำงาน ช่องว่าง
ระยะการตรวจจับ 8m วัสดุ อัลลอยอลูมิเนียม
คุณสมบัติ ทนต่อการกัดกร่อน แรงดันไฟฟ้า DC12-24V
อุณหภูมิการทำงาน -20 ~ 60 ℃ การดำเนินงานในปัจจุบัน < 50mA
เอาท์พุต ไม่/ไม่มี,COM ปัจจุบันทำงาน <20mA@DC12V
ข้อมูลจำเพาะ 2000*21*15 มม
เน้น

IP67 safety light curtain sensor

,

industrial high speed door sensor

,

cold storage door light curtain
ฝากข้อความ
รายละเอียดสินค้า




Product Description

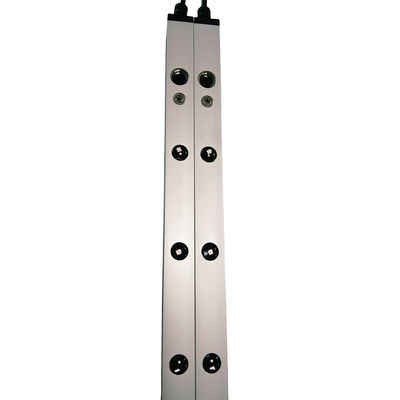

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 0



Shenzhen JUTAI IP67 Waterproof Safety Light Curtain Sensor: Your Industrial Operation’s Trusted Safety Shield

Shenzhen JUTAI Communication Co., Ltd. is proud to launch the IP67 Waterproof Safety Light Curtain Sensor—a rugged, high-performance safety solution engineered to excel in tough industrial settings where dust, moisture, and extreme temperatures are daily challenges. With its top-tier IP67 waterproof and dustproof certification, this sensor delivers non-stop reliability across diverse scenarios: from bustling manufacturing plants and high-throughput warehouses to sub-zero cold storage facilities and fast-paced automated production lines. It stands as an indispensable safeguard for modern industrial safety management.

10 Customizable Models to Fit Every Industrial Requirement

To meet the varied safety needs of different industrial sites, we’ve developed 10 distinct models, each featuring adjustable beam counts and lengths to align perfectly with your specific application. Below is a detailed breakdown of key model specs:
Model Length Beam Quantity Detection Range
CL05 - 4L 500mm 4 beams Up to 8 meters*
CL05 - 8L 500mm 8 beams Up to 8 meters*
CL10 - 8L 1000mm 8 beams Up to 8 meters*
CL10 - 16L 1000mm 16 beams Up to 8 meters*
CL15 - 8L 1500mm 8 beams Up to 8 meters*
CL15 - 16L 1500mm 16 beams Up to 8 meters*
CL20 - 8L 2000mm 8 beams Up to 8 meters*
CL20 - 16L 2000mm 16 beams Up to 8 meters*
CL25 - 8L 2500mm 8 beams Up to 8 meters*
CL25 - 16L 2500mm 16 beams Up to 8 meters*
Note: Actual detection range may vary based on environmental factors (e.g., dust, humidity) and beam quantity.

Core Advantages That Set It Apart

IP67 Protection & Heavy-Duty Construction

Encased in a fully sealed, high-strength aluminum alloy shell, the sensor shrugs off water jets and dust infiltration—making it ideal for wet or dusty environments like food processing plants. It maintains stable performance even in extreme temperatures as low as -25°C (perfect for cold storage) and as high as +75°C, adapting to both indoor and outdoor harsh conditions.

Dual Operational Modes for Versatility

  • Blanking Mode: Designed for door gap installations. It monitors each beam individually during door closure; if an obstacle blocks any beam, the door reverses instantly to prevent damage or injury.
  • Normal Mode: Mounted on door sides, any interruption to the light beams triggers an immediate door-opening signal, ensuring maximum safety for workers and equipment.

Precision Detection & Fast Response

With a 100mm beam spacing, the sensor accurately identifies small obstacles, minimizing accident risks in busy industrial areas. Its ultra-fast response time (≤20ms) keeps up with high-speed workflows—critical for automated production lines and rapid-moving machinery.

Energy Efficiency & Customization

Consuming just ≤4W of power, the sensor helps businesses reduce long-term operational costs. Additionally, you can choose 4–16 beams to match the exact detection area of your industrial setup, avoiding unnecessary waste of resources.

Detailed Technical Specifications

Parameter Details
Product Type Safety Light Curtain Sensor
Waterproof & Dustproof Rating IP67 (fully dustproof, waterproof; suitable for moist/harsh environments)
Working Voltage 24V DC ± 10%
Power Consumption ≤ 4W
Response Time ≤ 20 ms
Beam Count (e.g., CL10-8L) 8 beams
Detection Range Up to 8 meters (influenced by environment and beam count)
Beam Spacing 100mm
Operating Temperature -25°C to +75°C
Relative Humidity 95% (non-condensing)
Housing Material High-impact aluminum alloy
Output Type NPN or PNP (optional, based on customer needs)
Detection Principle Light-based (obstacle blocks light beams to trigger response)
Mounting Adjustable bracket (easy to install and align for precise positioning)
Safety Certification CE Certified (Certificate No.: CTC142H1007801SC)

Key Applications & Practical Benefits

Industrial Door Safety

  • Rolling Doors: Used in warehouses and factories for quick access; detects obstructions during closing and reopens the door to avoid collisions with goods or workers.
  • Sectional Doors: Protects vertically opening doors (for heavy machinery entry) by sensing people or objects in the door’s path, preventing crushing risks.
  • High-Speed Doors: Perfect for cold storage, pharmaceutical facilities, and food plants—stops and reopens doors mid-close if beams are blocked, preserving temperature control and safety.
  • Foldable Doors: Prevents injuries from fast-moving foldable doors in high-traffic, space-limited areas (e.g., narrow factory corridors).
  • Automatic Sliding Doors: Detects obstacles/people in the door’s path to halt movement, avoiding collisions in industrial or commercial spaces.
  • Fire Doors: Ensures safe, unobstructed closure in industrial sites by detecting barriers, protecting both personnel and vehicles during emergencies.
  • Cold Storage Doors: Performs reliably at -25°C, unaffected by moisture, condensation, or fog—critical for maintaining cold chain integrity and safety.

Other Industrial Safety Scenarios

  • Material Handling (Conveyors): Prevents collisions between workers, machinery, and moving conveyor parts, reducing workplace accidents.
  • Robotic Arms: Stops fast-moving robotic arms immediately if a person or object crosses the light beam, shielding workers from harm.
  • Automated Guided Vehicles (AGVs): Enables safe AGV navigation in dynamic warehouses/factories, avoiding obstacles and pedestrians.
  • Packaging Equipment: Halts high-speed packaging machines when obstructions are detected, protecting operators and preventing equipment damage.

Why Choose to Cooperate with Shenzhen JUTAI Comm Co., Ltd.?

  • 10+ Years of Industry Expertise: As a leading player in the sensor sector, we specialize in developing robust, efficient, and cost-effective safety solutions tailored to industrial needs.
  • Customized Support Services: We offer free on-site evaluations to assess your unique safety requirements and provide custom product solutions for specific scenarios.
  • 24/7 Customer Service: Our dedicated team is available around the clock to resolve technical issues, offer installation guidance, and address your queries promptly.

Contact Us Today

Protect your industrial operations with Shenzhen JUTAI’s IP67 Waterproof Safety Light Curtain Sensor—your reliable partner for long-term safety and efficiency.

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 1





IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 2





IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 3



IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 4

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 5







IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 6

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 7

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 8

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 9
IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 10
IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 11

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 12

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 13
IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 14

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 15

IP67 Safety Light Curtain Sensor for Industrial High Speed Doors Cold Storage Doors CE 16
